Product Description:

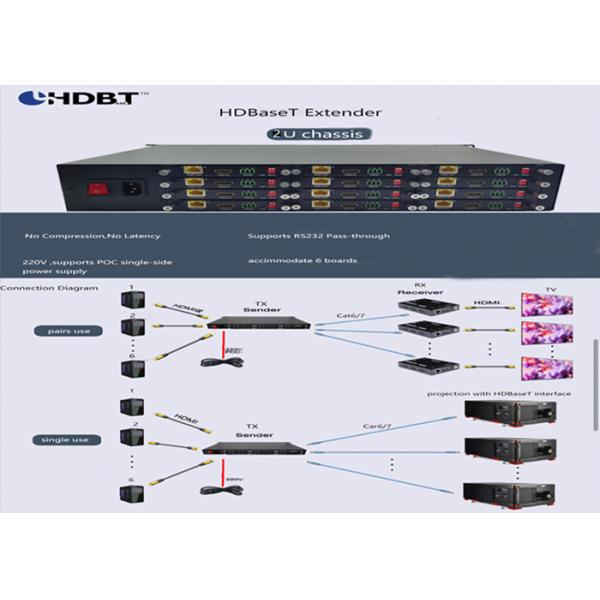

The Rack-Mount HDBaseT Extender is a professional-grade audiovisual solution designed to transmit HDMI signals over standard Cat5e/6/7 Ethernet cables. Supporting ultra-high-definition video, multi-channel audio, control signals, and Power over HDBaseT (PoH) over distances of up to 100 meters, this extender is built for integration into 19-inch rack systems (1U/2U height), making it ideal for centralized management in control rooms, data centers, and large-scale AV installations.
Features:
Long-Distance Transmission: Utilizes HDBaseT technology to extend HDMI signals up to 100 meters via a single Cat5e/6/6a cable, ensuring reliable signal quality over extended distances.
High-Definition Support: Compatible with resolutions up to 4K at 60Hz, delivering crisp and detailed video output for professional applications.
Comprehensive Signal Support: Transmits multi-channel audio, control signals, and PoH, streamlining your AV setup by reducing the need for additional cables and power sources.
Rack-Mountable Design: Designed to fit standard 19-inch racks with 1U/2U height options, facilitating organized and efficient equipment management in professional environments.
Flexible Integration: Equipped with rack extender brackets and adjustable rack depth extender features, allowing for customization based on your specific installation requirements
Technical Parameters:
| Technical |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 / HDCP 1.x |
| Video Bandwidth | 18Gbps |
HDMI Input / Output
Video Resolution | 4K2K 50/60Hz 4:4:4
4K2K 50/60Hz 4:2:0
4K2K 30Hz 4:4:4
1080p, 1080i, 720p, 720i, 480p, 480i
All PC resolutions including 1920 x 1200 |
| Extended Distance | 70 meters (resolution is up to 1080P60Hz)
40 meters (resolution is up to 4K60Hz 4:4:4) |
| Color Space | RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0 |
| Color Depth | 8-bit,10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)]
8-bit [4K60Hz (YCbCr4:4:4)] |
| HDR formats | HDR10, HDR10+, Dolby Vision |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| L/R Audio Formats | PCM2.0CH
Note that If ARC function is on, the audio port will mute. |
| Optical Audio Formats | LPCM2.0, Dolby Digital / Plus, DTS |
Applications:
The Rack-Mount HDBaseT Extender is a cornerstone of professional AV systems, offering long-range, lossless transmission and centralized control. Its integration of video, audio, control, and power over a single cable makes it ideal for broadcasting, healthcare, security, education, and entertainment applications, outperforming traditional HDMI and fiber solutions in versatility and cost-efficiency.
Control Rooms: Centralize AV equipment for efficient monitoring and management, ensuring seamless distribution of high-quality video and audio signals.
Data Centers: Extend HDMI signals to remote displays within server rooms, providing clear visual access to critical data and system statuses.
Large-Scale AV Installations: Distribute high-definition content across multiple displays in venues such as auditoriums, conference halls, and exhibition spaces.
By incorporating the Rack-Mount HDBaseT Extender into your AV infrastructure, you can achieve efficient, high-quality signal transmission tailored to the demands of professional environments.
